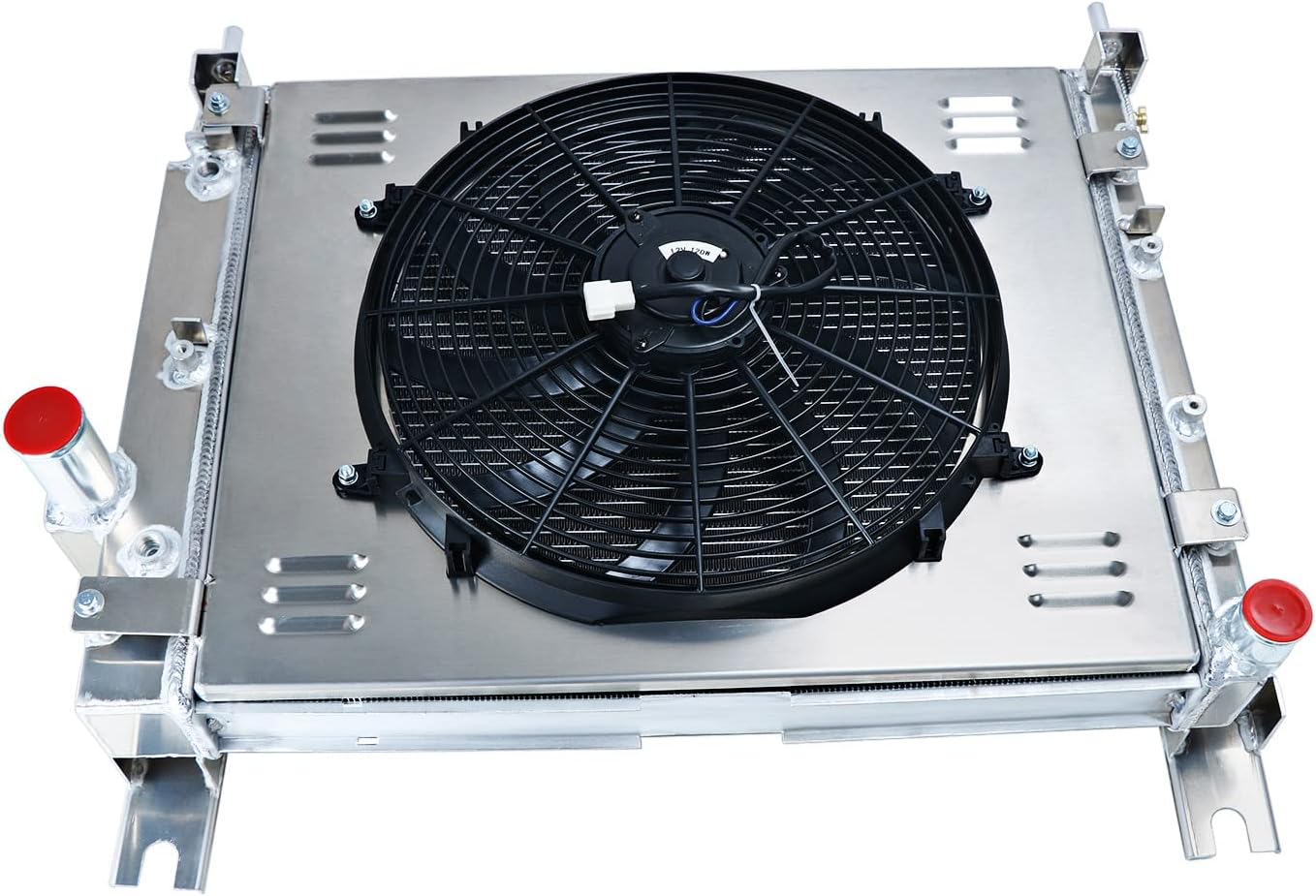

Radiator for 2000-2004 Dodge Durango Dakota 3.9L V6 4.7L V8 Engine, 4 Row Aluminum Radiator + Shroud/Fan + Relay Kit

This Radiator Compatible with: Fit: 2000-2002 Dodge Dakota (L4 2.5L) 2004 Dodge Dakota (V6 3.7L) 2000-2003 Dodge Dakota (V6 3.9L) 2000-2004 Dodge Dakota (V8 4.7L) 2000-2003 Dodge Dakota (V8 5.9L) 2000-2003 Dodge Durango (V8 4.7L) 2000-2003 Dodge Durango (V8 5.9L) Please Notice: To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Size, Trim and Engine in the Compatibility Table. Also review the notes section in the compatibility chart for additional specifications about this part Radiator Specs: High Performance Racing Spec. 4-Row of tubes Core Racing Design Tank & Core Material: Full Aluminum Flow Type: Crossflow Fitment Type: Direct Replacement Performance: Up to 30%~45% more cooling Petcock Drain: OEM style brass petcock drain Radiator Cap: CNC machined filler neck and cap PLS check core/overall/inlet/outlet SIZE carefully before you order Fan Details: 16inch Fan Voltage: DC 12 Volts Maximum Fan CFM: 2150 cfm Thickness (in): 2.500 Number of Blades: 10 S-Type blades Maximum Fan RPM: 2,250 rpm Amp Draw: 10 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8" NPT thread-in brass probe included Probe typically threads into radiator, water outlet or manifold Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans This set up will run Fans & pull air in through radiator AA5052 Aluminum Shroud and Fans: The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine With excellent operating temperature management, allowable levels of engine temperature are stabilized Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine About product shipping: This aluminum radiator is big and easy got damaged during shipping, if the radiator or packing box arrived damaged, pls contact us and offer us pics of damage details, we offer a full refund or replacement Welcome to our store, Have a nice shopping!!! Note: If need 4-row core Aluminum Radiator ASIN is: B0B9XV4V82

• Core Size(inch): 23.43 H x 18.8 W x 2.44 Thickness / Overall Size(inch): 30.5 L x 23.8 W / Rows: 4
• Inlet(inch): 1.5 (On Driver Side) / Outlet(inch): 1.77 (On Passenger Side) / 100% welded by TIG
• The KUUHLERSAT Radiator is made of full AA5052 aluminum construction, all item is 100% inspected and tested for quality assurance
• High performance racing design, improves cooling by 35 -45% Temp, build-in transmission cooler
• All cooling products are designed to OEM standards for fitment, performance, and quality
